FEATURES:

● By adopting the specially designed soldering tip, Tsutsumi Robot realizes linear soldering for four lines at the same time and

   achieves soldering 200pcs of plug-in components within 80 seconds. It greatly increases the operation efficiency.

● Tsutsumi heater s its sensor deep into the tip end, so as to improve the feedback of the tip temperature. Thus, the heat

   recovery is quick and the soldering temperature fluctuation is small. As a result, the tip’s service life is lengthened and the

   tip cost is reduced effectively.

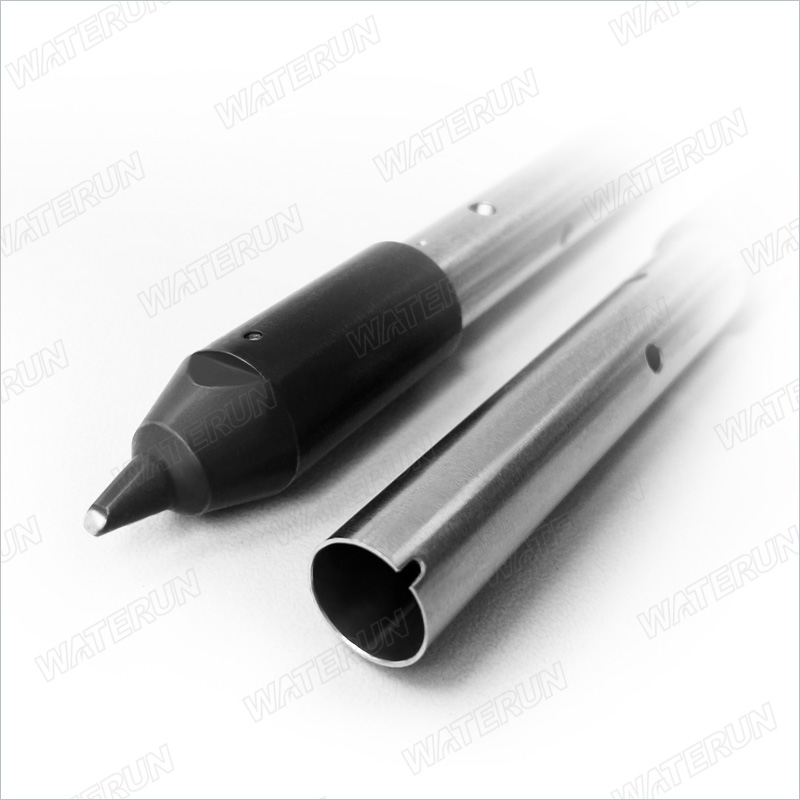

● Tsutsumi tip adopts special slot design and position correction device, which prevents the position deviation possibly caused

    during the tip replacement. It realizes repeatable tip replacement in a simple and fast way.
