ESD Access Turnstile System

Features:

The ESD Access Turnstile System veriftes the effectiveness of the ESD gear of an operator-wrist

strap and foot wear with just a push of a button. Testing is completed in less than 2 seconds.

Only upon passing this ESD testing, will the personnel be allowed entry into an ESD sensitive area.

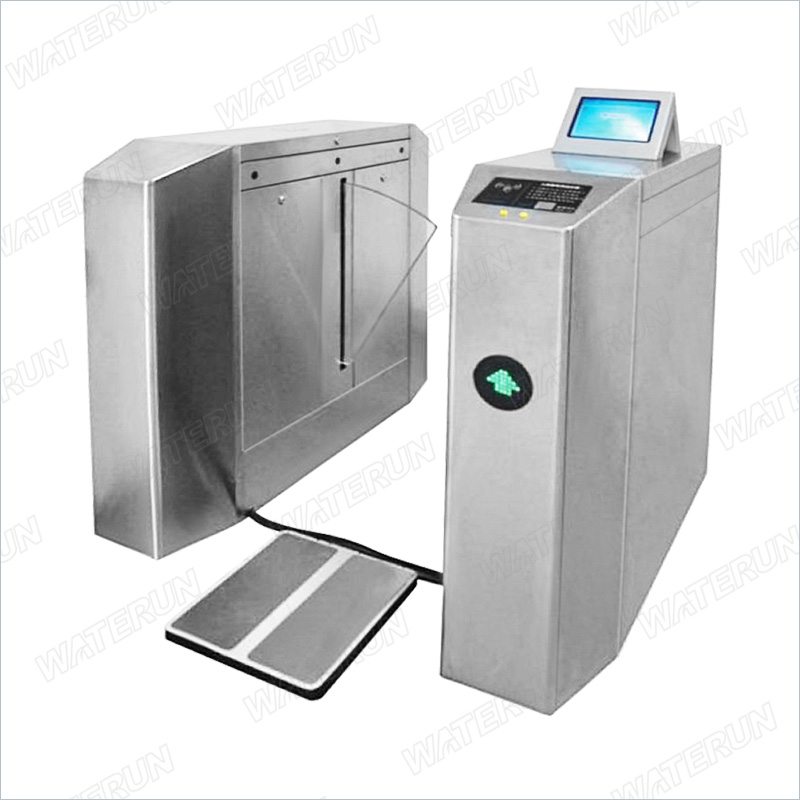

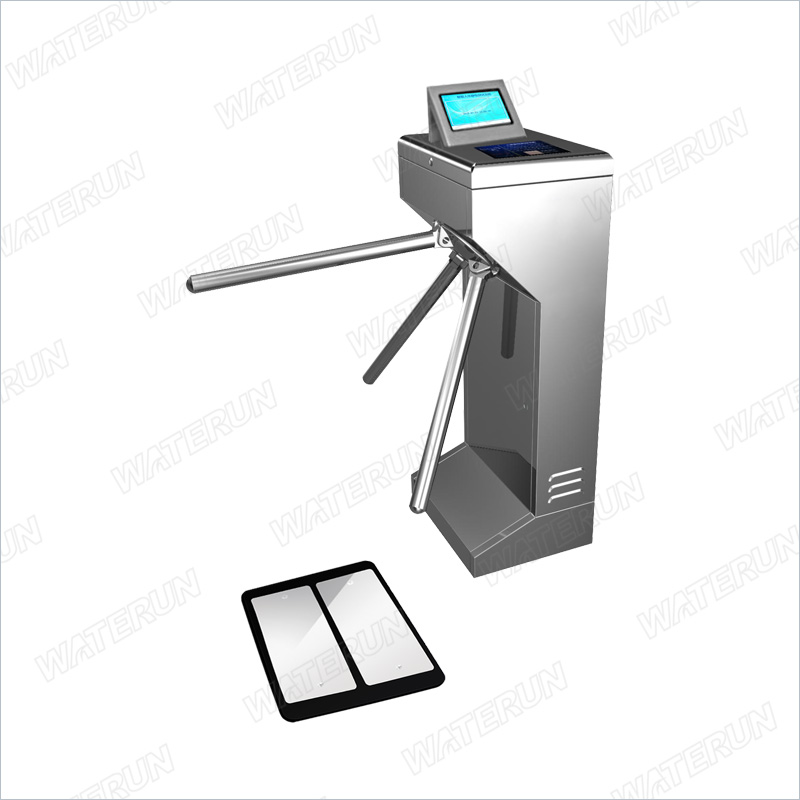

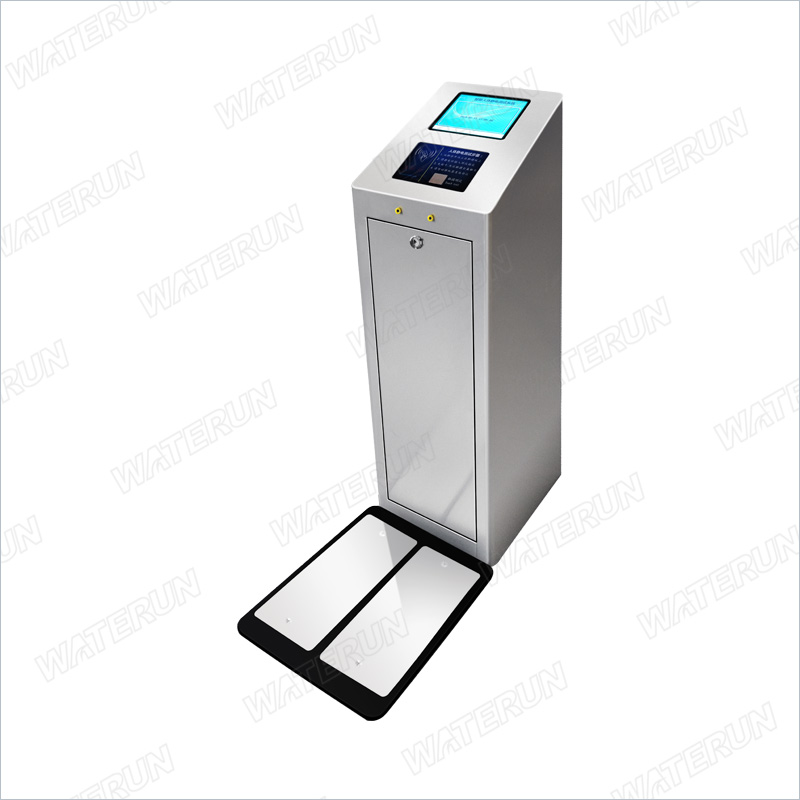

The system mainly consists of turnstile + human body comprehensive tester + reader card ( IC or

ID card), + LCD display + management software + administrator host (company's existing computer)

According to different needs, four individual clearance levels can be chosen as below:

L1. VIP. free of test;

L2. IC Card + anti-static wrist strap;

L3. IC Card + anti-static shoes or heel strap;

L4. IC Card + anti-static wrist strap + anti-static shoes or heel strap

Specifications:

Test Range:

for wrist strap: 0.75-20 Meg Ohms

for footwear: 0.75-100 Meg Ohms

Test Accuracy: ±5%
