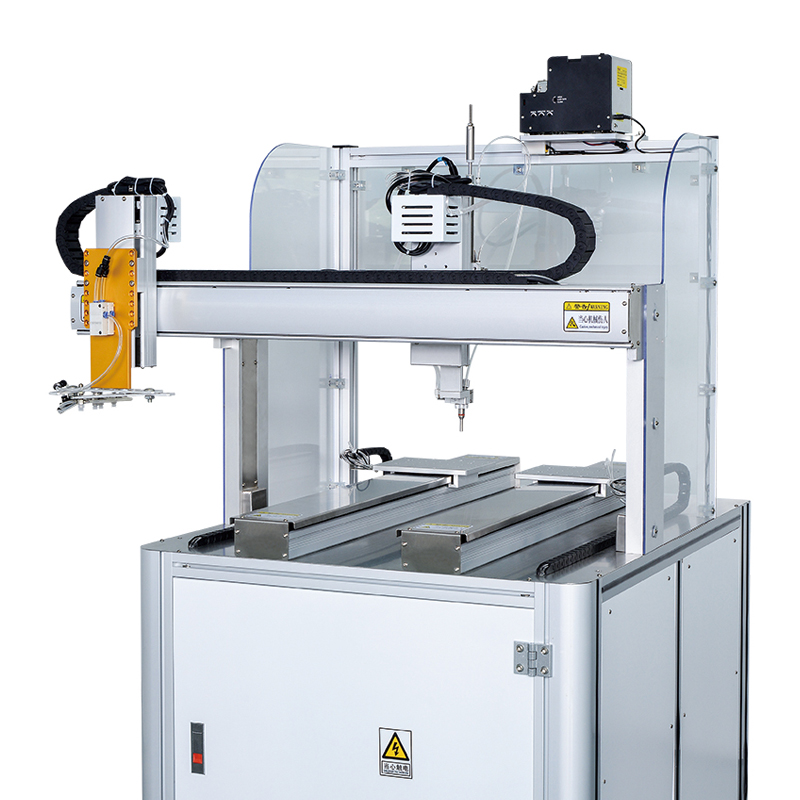

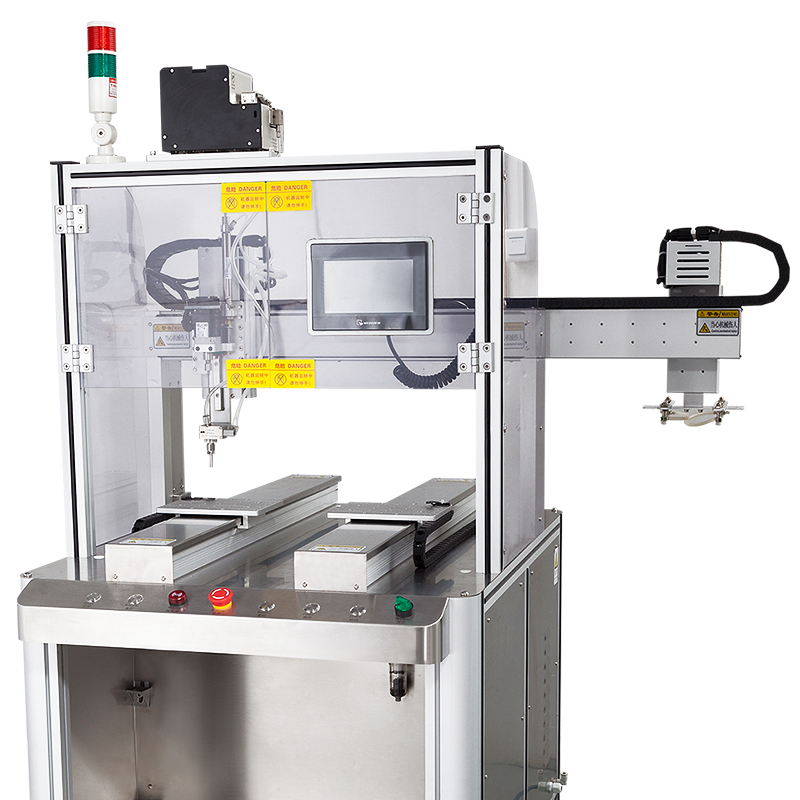

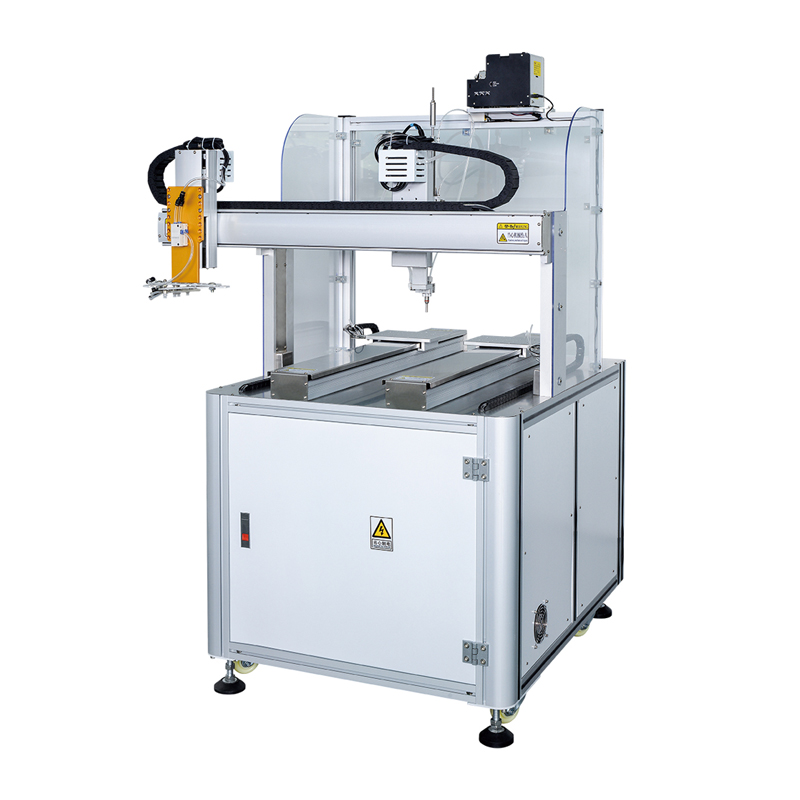

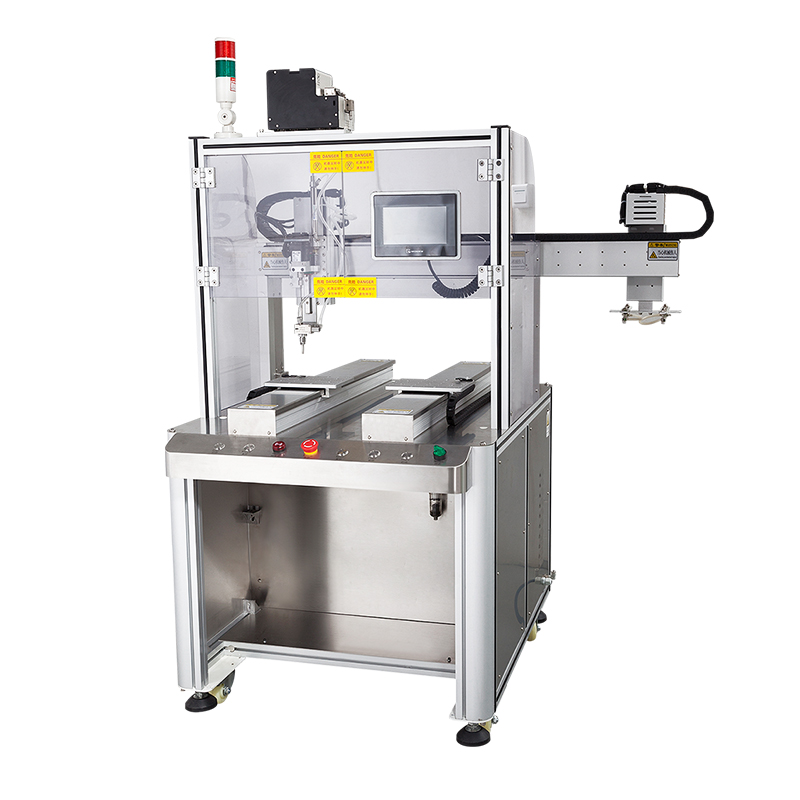

WT-7026-2Z With Mechanical Arm Pick-Up Screw Fastening Robot
4 ( P/N: W00648 )

Mobel:  WT-7026-2Z
● MOQ :  1set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

WT-7026-2Z  (WITH MECHANICAL ARM PICK-UP)

Screw Fastening Robot

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.


Specifications:
Model
WT-7026-2Z
Operating Range (X * Y* Y * Z)

X260 * Y1/700 * Y2/700 * Z135mm

Movement Speed

X/Y Axis: ≤500mm/sZ Axis: ≤300mm/s.

Repeatability  Accuracy

 ±0.03mm

Screwing time for each screw

0.8~1.2s/piece

Suitable screw size

M1.5 – M4 (total screw length ≤ 20mm)

Control system

SCM + Touch Screen

Program capacity

15 files, each file can save up to 99 points

Air source

 0.4 -0.6 Mpa

Dimensions (WxDxH)

1090 x 1300 x 1750mm

Weight

130 kgs





























Features:

1. The back side can support a mechanical arm to pick up the products automatically after screwing completed.

2. With the work cabinet, the screwing performance is very stable and the working position can be moved flexibly.

3. The screws feed to the screwdriver bit directly one by one trough a tube, to achieve extremely fast feeding and screwing.

4. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.

5. With alarm funtion for fastening missing, untightened screws, worn thread, etc.

6. Servo Motor or Electric Screwdriver are optional. Both of them can adjust the torque and rotation speed freel.



Applications:

It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.



Basic Configuration:
