Double Head with Digital Display Soldering Robot
4 ( P/N: W00654 )

Mobel:  S5331
● MOQ :  1set
● Packing details:  1 set / carton
● Payment Terms:  T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

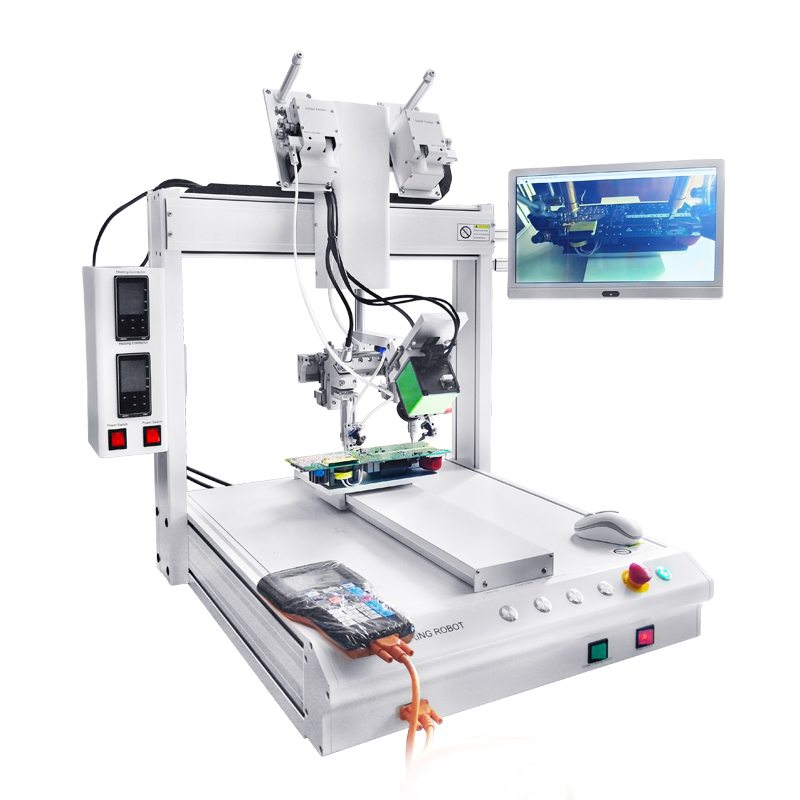

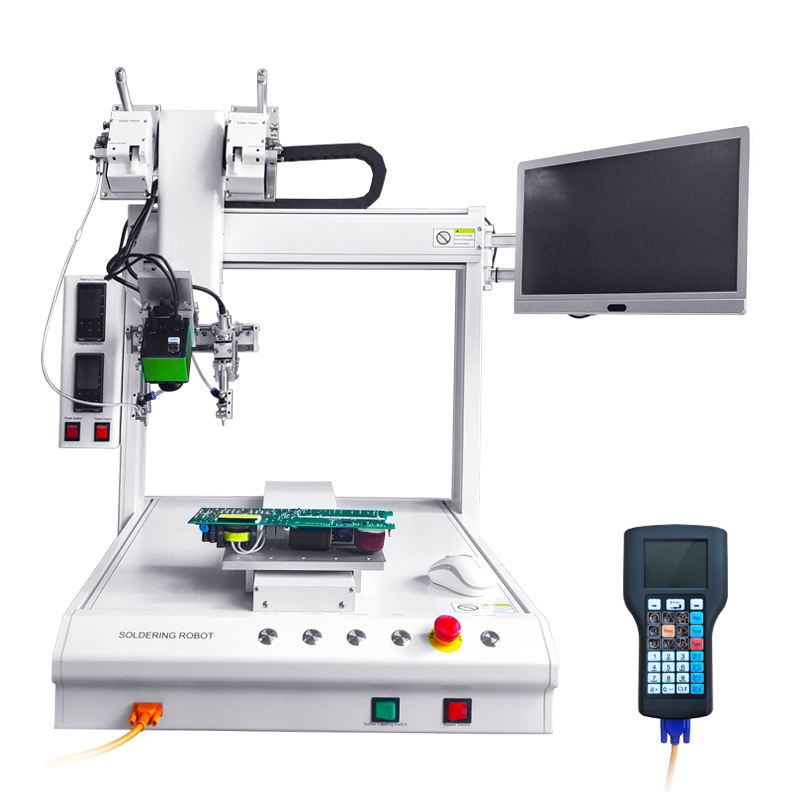

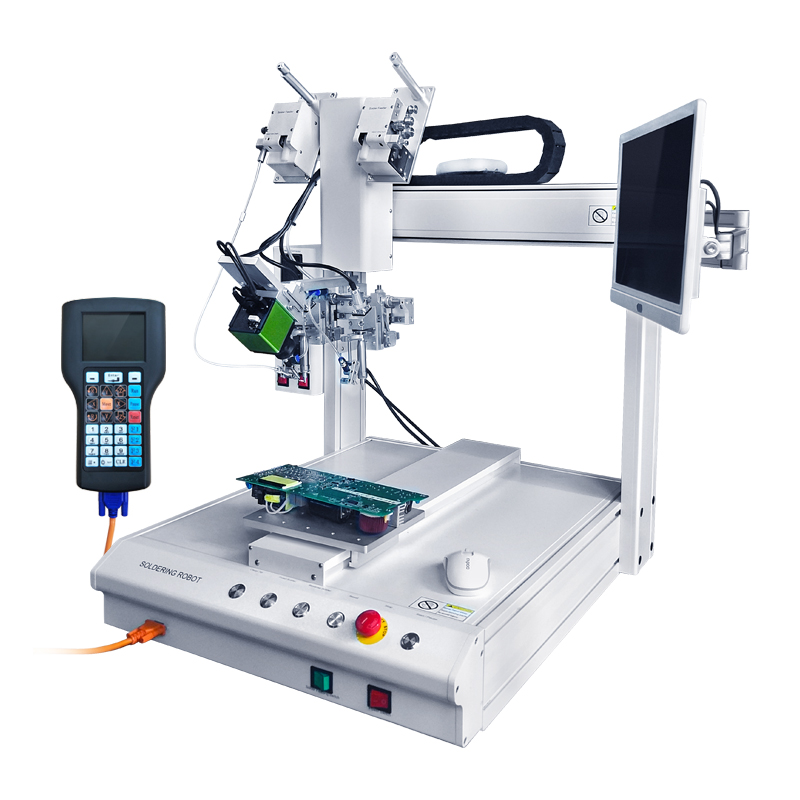

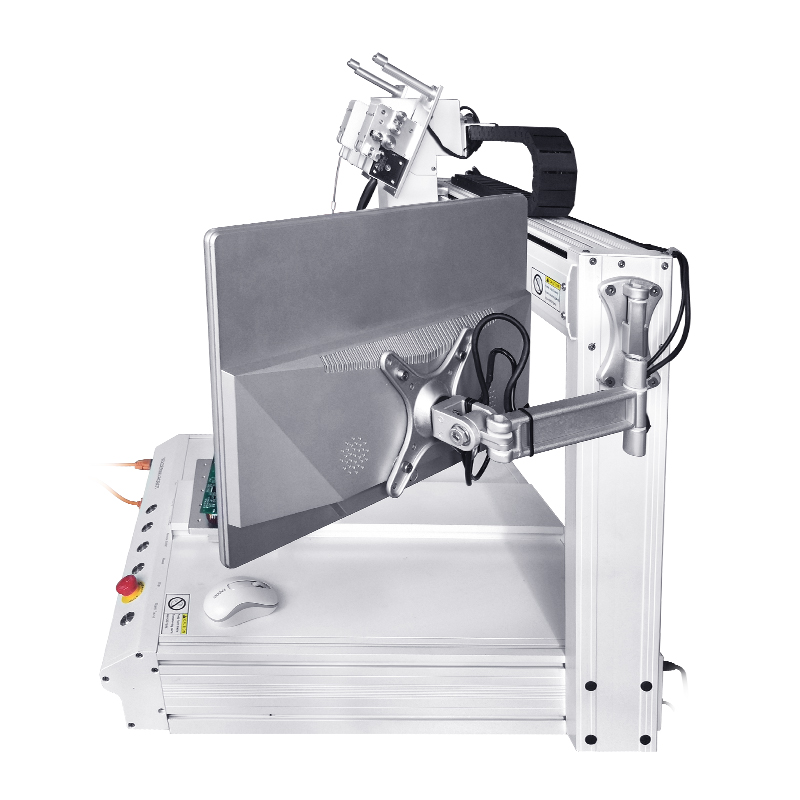

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Specifications:

Model
S5331-Double
Voltage
110V / 220V
Heating Power
150~300W
Preheating Temperature Range
0℃~550℃
Axis
5
Operating Range (X * Y * Z)
500 x 400 x 80mm
Movement Speed
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy
±0.002mm (X * Y * Z)
Resolution
0.01mm (X * Y * Z)
Maximum Load Weight
8kg (for work platform)
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Program Capacity

Operate Temperature
0℃~40℃
Operate Humidity
20~90%
External Dimensions
1040 x 680 x 900mm
Weight
about 85kgs































Features:

1.High power heating controller ensures the tip temperature to reach 350°C within 30 seconds;

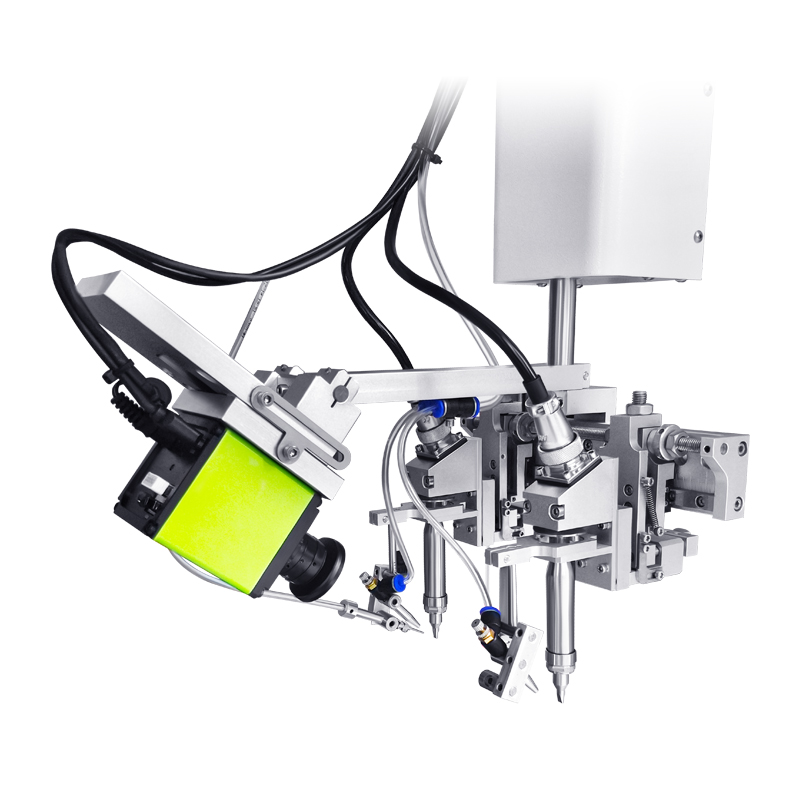

2.With the sleeve design, the soldering tip can be replaced quickly and easily.
3.Intelligent solder feeding mode, parameters can be set freely.
4.Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
