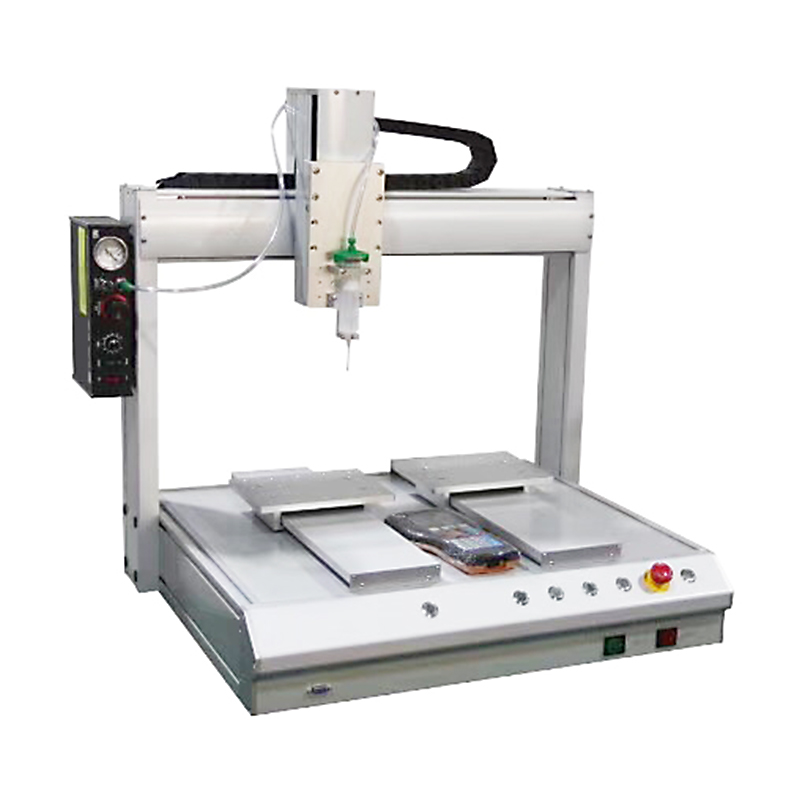

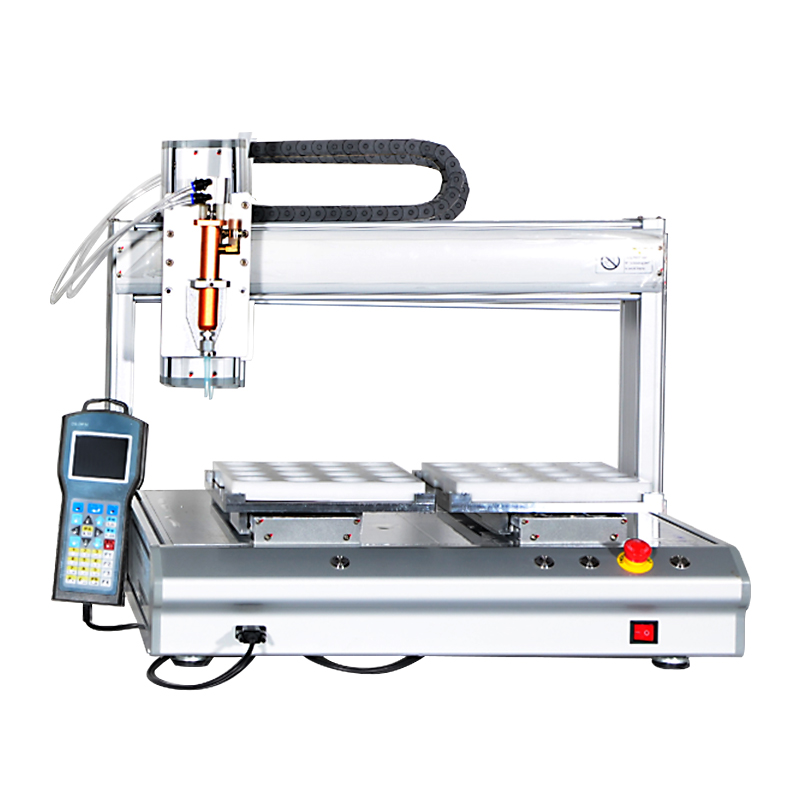

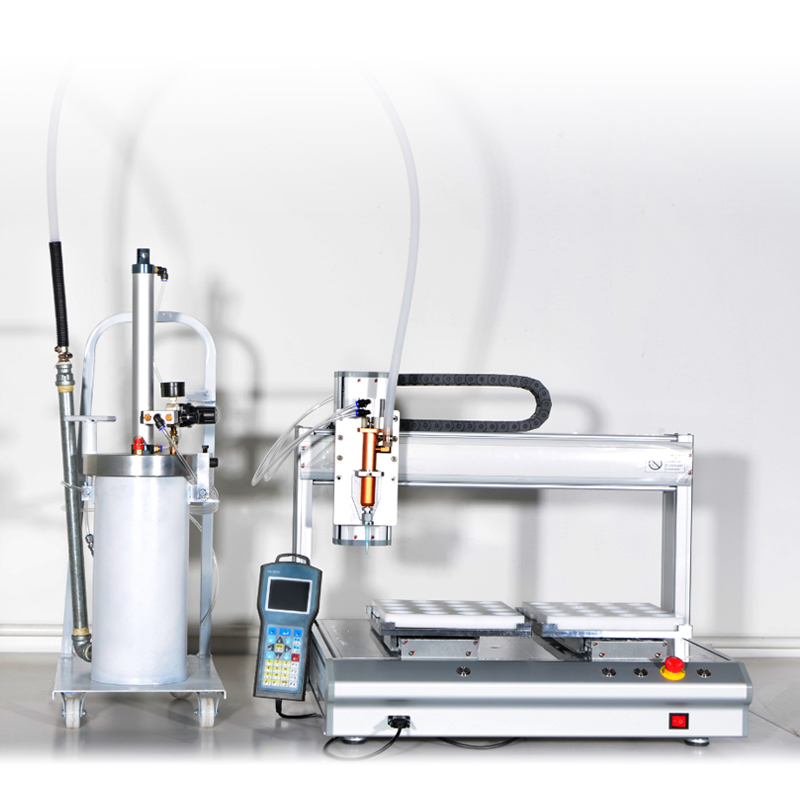

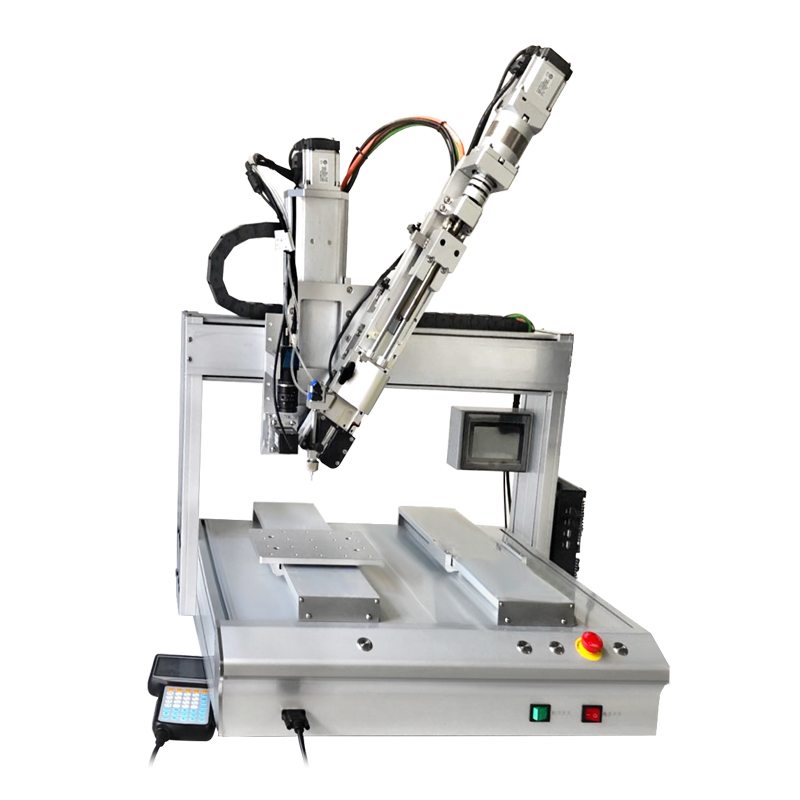

Glue Dispensing Robot
Our glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can repid recovery cost.
Specifications:
Model |
DJ-5331 |
Voltage |
110V / 220V AC |
Operating Range (X * Y* Y * Z) |
X500 * Y1/300*Y2/300* Z100mm |
Repeatability Accuracy |
±0.02mm |
Movement Speed |
0.1~800mm / sec |
Maximum Load Weight |
8kg / 4kg /4kg/3kg (X/Y/Y/Z) |
Editing Mode |
Teaching Pendant |
Program Capacity |
999 programs |
Movement Patterns |
Point-to-point / straight line / point, line,circle,ac |
External Dimensions |
650mm x 630mm x 680mm (WxDxH) |
Weight |
about 60 kgs |
Features:
1. Double Y Aixs can achieve higher efficiency and more convenied operation.
2. Replace the human labor and save labor cost.
3. Simple and convenient operation, high speed and precise control.
4. Realize the precise dispensing by the high-precision motor.
5. High performance Linear structure platform with nice appearance.
