Conductive Circulation Boxes
4 ( P/N: W00189 )

Mobel:  WT-2101
● MOQ :  10 pcs
● Packing details:
● Payment Terms:   T/T in advance, Paypal, Western Union

Qty:

  • Product Details
  • Reviews

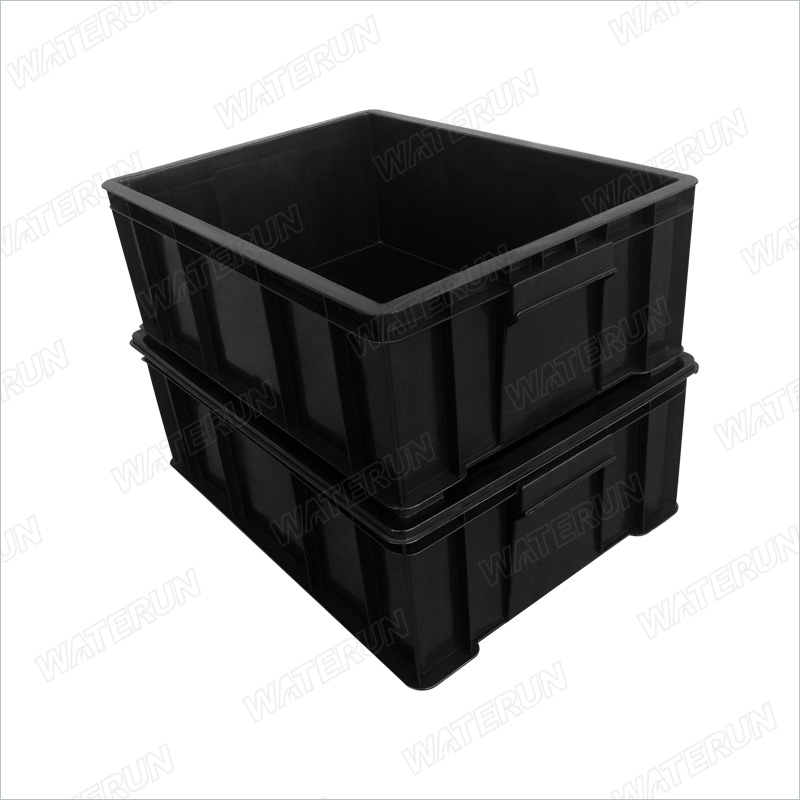

Conductive Circulation Boxes

Surface Resistance: 10e4-10e6 ohm.

Difference sizes available.

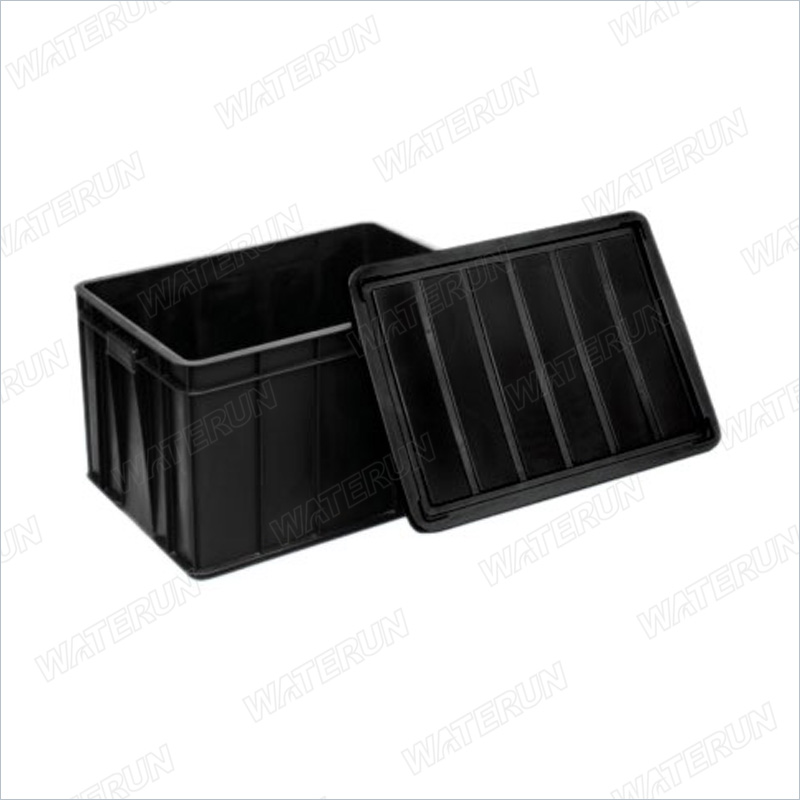

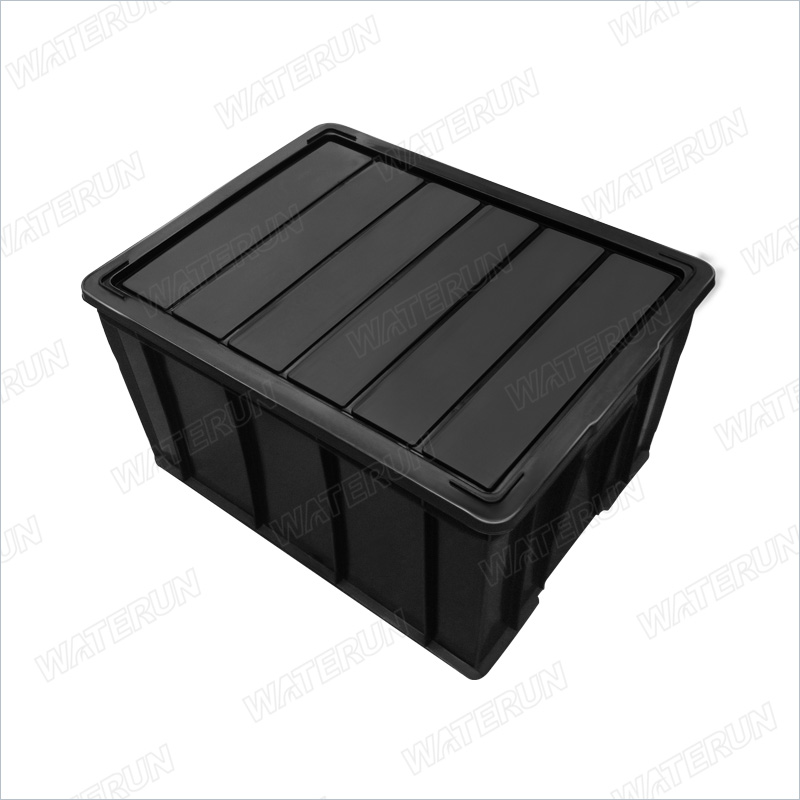

Note: " * " means available with cover.


Model
External Size (mm)
Internal Size (mm)
Model
External Size (mm)
Internal Size (mm)
WT-2101
155 x 105 x 55
135 x 85 x 50
*WT-2116
565 x 420 x 380
510 x 390 x 375
WT-2102
205 x 135 x 65
180 x 120 x 60
WT-2119
610 x 500 x 400
560 x 455 x 395

WT-2103

255 x 175 x 75
220 x 160 x 70

WT-2120

610 x 415 x 245
580 x 380 x 240
WT-2104
300 x 205 x 90
270 x 185 x 80
WT-2125
600 x 500 x 160
560 x 460 x 155
WT-2105
360 x 270 x 135
320 x 240 x 125
WT-2127
580 x 368 x 200
535 x 345 x 195
WT-2106
380 x 240 x 105
340 x 220 x 90
WT-2128
580 x 368 x 165
535 x 345 x 155
WT-2107
420 x 310 x 155
380 x 280 x 145
WT-2129
615 x 425 x 155
580 x 385 x 145
WT-2109
500 x 360 x 175
470 x 330 x 165
*WT-2130
620 x 425 x 320
580 x 395 x 310
*WT-2110
565 x 420 x 240
510 x 390 x 235
WT-2131
720 x 450 x 180
680 x 420 x 175
*WT-2111
565 x 420 x 300
510 x 390 x 290
WT-2132
720 x 560 x 380
675 x 515 x 370
*WT-2112
600 x 500 x 150
560 x 455 x 140
WT-2136
560 x 430 x 145
515 x 350 x 140
*WT-2113
600 x 500 x 300
560 x 455 x 290
WT-2137
585 x 405 x 175
538 x 360 x 170
*WT-2114
600 x 500 x 360
560 x 460 x 355
*WT-2139
620 x 430 x 200
580 x 385 x 195
WT-2115
600 x 400 x 160
620 x 360 x 150
*WT-2149
620 x 430 x 250
580 x 395 x 243
