Features:

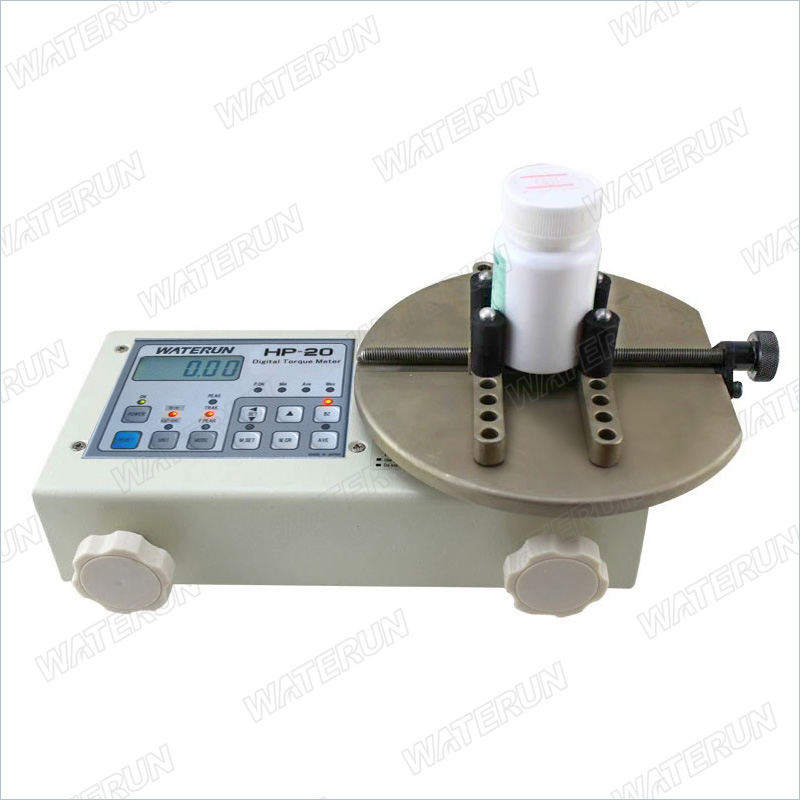

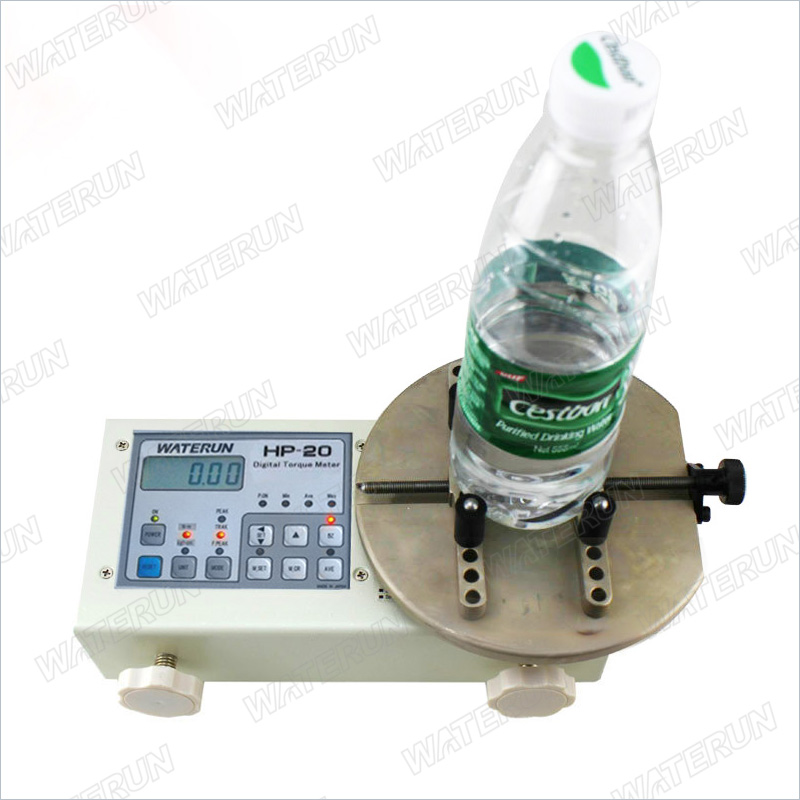

1.Specially designed for measuring and calibrating the torque of bottle caps.

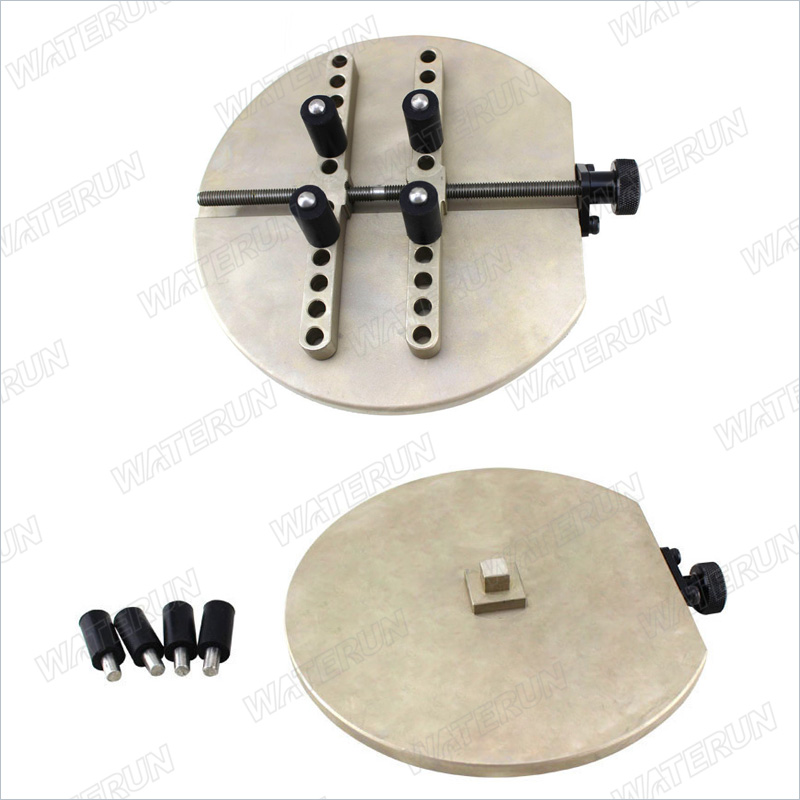

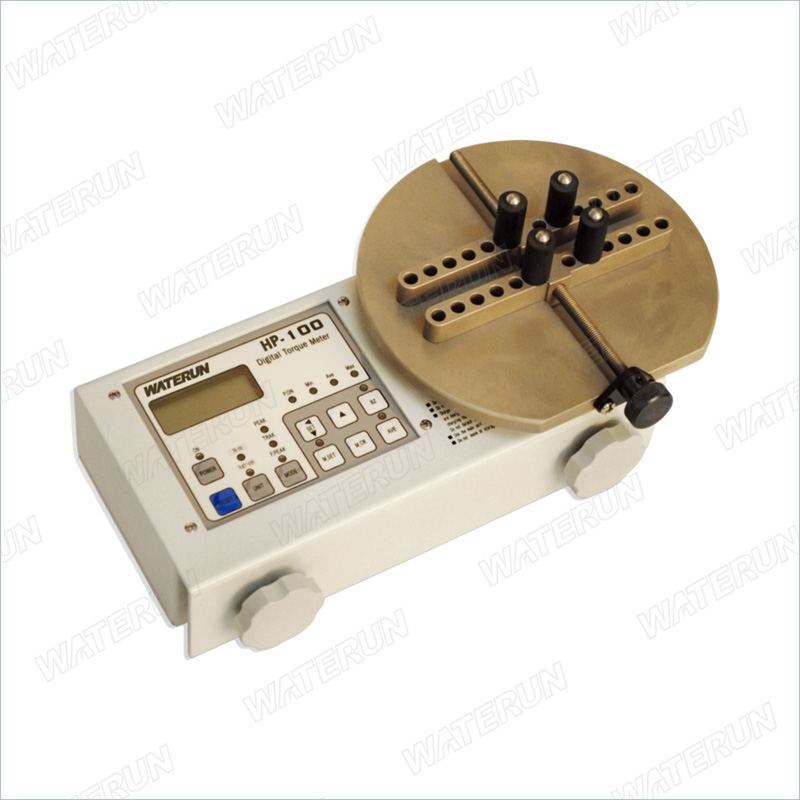

2.It is based on HP series digital torque meters (intelligent type), attached with a bottle cap clamp. The clamp is
easy to install and adjust. It can hold caps of different shapes and different dimensions.
3.A built-in o/p terminal can be connected to the computer for recalling, editing, and calculating measured datum.
| Model | HP-2 | HP-10 | HP-20 | HP-50 | HP-100 | |
|
Measurement Range |
Kgf.cm |
0.03-2.0 |
0.15-10.0 | 0.2-20.0 | 0.75-50.0 | 1.5-100.0 |
| N.m | 0.003-0.2 | 0.015-1.0 | 0.02-2.0 | 0.075-5.0 | 0.15-10.0 | |
| Lbt.in |
0.03-1.8 |
0.15-9.0 | 0.20-18.0 | 0.75-45.0 | 1.5-90.0 | |
| Accuracy | within ± 0.5% | |||||
| Applicable Cap Diameter | 16~160mm | |||||
