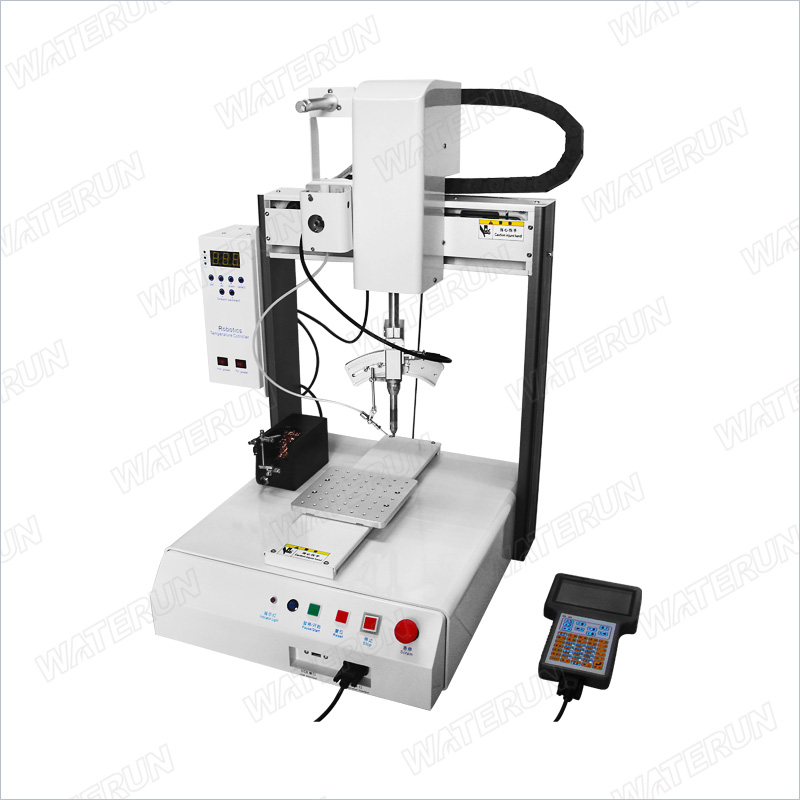

Starobot Soldering Robot:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Model |
S515 |
Voltage |
110V / 220V |
Heating Power |
200W |
Preheating Temperature Range |
0℃~500℃ |
Axis |
4 |
Operating Range (X * Y * Z) |
400 x 400 x 100mm |
Movement Speed |
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec |
Repeat Positioning Accuracy |
±0.002mm |
Resolution |
0.01mm |
Maximum Load Weight |
8kg (for work platform) |
Solder Wire Diameter |
0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
Demo File Capacity |
≤999files, max 1994 points for each file |
Program Capacity |
max 255 programs |
Operate Temperature |
0℃~40℃ |
Operate Humidity |
20~90% |
External Dimensions |
720mm x 700mm x 810mm |
Weight |
about 66kgs |
Features:
1. Applicable for different products, soldering temperature can be set freely.
2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3. Numerically controlled temperature (static air condition: ±1℃)

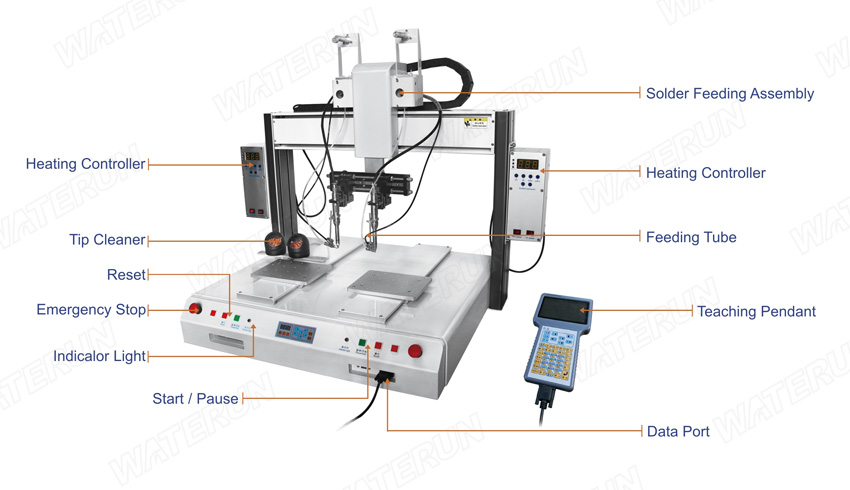

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

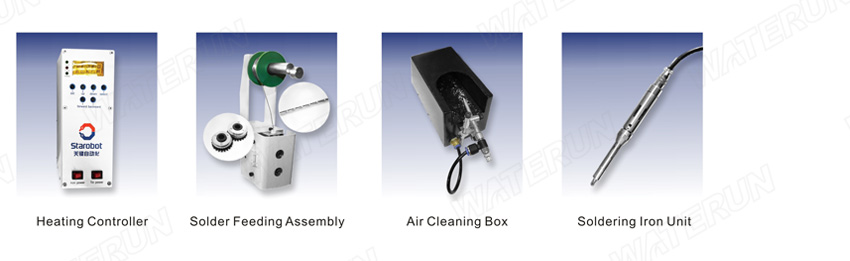

Basic Configuration:
